Vacuum molding machine (VAC machine)

VAC machine is used to produce prototypes of car interior parts and so on.
We confirm and adjust to obtain a proper product according to the planning.

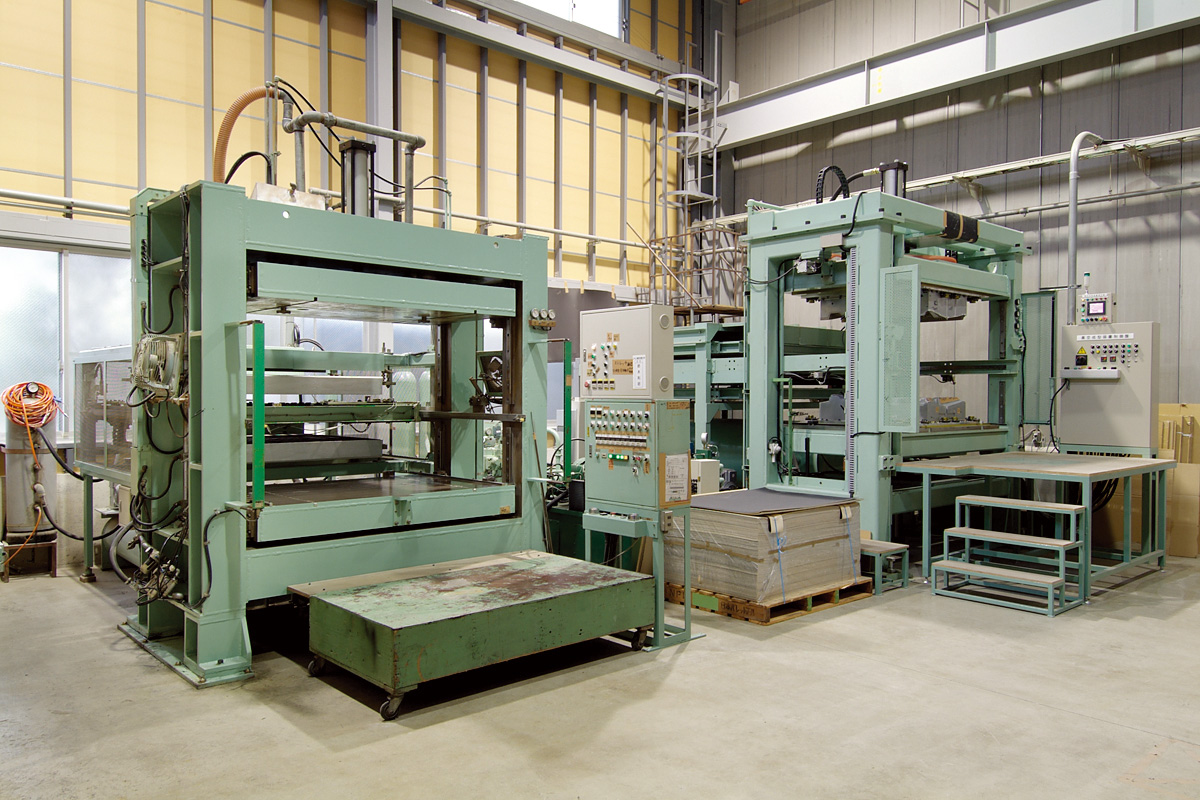

Name of the equipment	VAC Machine(left on photo)
Maximum load	20t
Plate dimension	1650×1300
Stroke	1230
Heater dimension	1500×1200
Stretch frame dimension	1390×1360
Stretch frame dimension	550×620
Max height of the lower mold	Less than 380

Name of the equipment	VAC Machine(right on photo)
Maximum load	20t
Plate dimension	1650×1300
Stroke	1330
Heater dimension	2000×1700
Stretch frame dimension	1700×1400
Stretch frame dimension	620×530
Max height of the lower mold	Less than 480

Name of the equipment	Press machine
Maximum load	20t
Plate dimension	1900×1500
Stroke	980
Heater dimension
Stretch frame dimension
Stretch frame dimension
Max height of the lower mold
